Literature Review

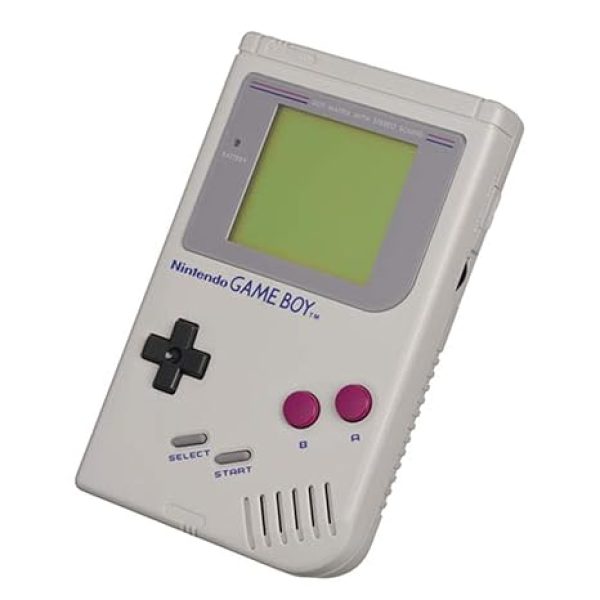

The original Game Boy and its successors were the most popular and financially successful handheld consoles in the 1990s and early 2000s with several millions units sold and a large catalogue of officially published games. Unlike many older consoles, Game Boys use only a single integrated System-on-a-Chip (SoC) for almost everything, and this SoC includes the processor (CPU) core, some memories, and various peripherals.
The CPU core in the Game Boy SoC is a custom Sharp design that hasn’t publicly been given a name by either Sharp or Nintendo. However, using old Sharp datasheets and databooks as evidence, the core has been identified to be a Sharp SM83 CPU core, or at least something that is 100% compatible with it. SM83 is a custom CPU core used in some custom Application Specific Integrated Chips (ASICs) manufactured by Sharp in the 1980s and 1990s.
SM83 is an 8-bit CPU core with a 16-bit address bus. The Instruction Set Architecture (ISA) is based on both Z80 and 8080, and is close enough to Z80 that programmers familiar with Z80 assembly can quickly become productive with SM83 as well. Some Z80 programs may also work directly on SM83, assuming only opcodes supported by both are used and the program is not sensitive to timing differences.
The first known mention of the SM83 CPU core is in Sharp Microcomputers Data Book (1990), where it is listed as the CPU core used in the SM8320 8-bit microcomputer chip, intended for inverter air conditioners [1]. The data book describes some details of the CPU core, such as a high-level overview of the supported instructions, but precise details such as full opcode tables are not included. Another CPU core called SM82 is also mentioned, but based on the details it’s clearly a completely different one. The SM83 CPU core later appeared in Sharp Microcomputer Data Book (1996), where it is listed as the CPU core in the SM8311/SM8313/SM8314/SM8315 8-bit microcomputer chips, meant for home appliances [2]. This data book describes the CPU core in much more detailed manner, and other than some mistakes in the descriptions, the details seem to match what is known about the GB SoC CPU core from other sources.
Sharp SM83 uses a microprocessor design technique known as fetch/execute overlap to improve CPU performance by doing opcode fetches in parallel with instruction execution whenever possible. Since the CPU can only perform one memory access per M-cycle, it is worth it to try to do memory operations as soon as possible. Also, when doing a memory read, the CPU cannot use the data during the same M-cycle so the true minimum effective duration of instructions is 2 machine cycles, not 1 machine cycle. Every instruction needs one machine cycle for the fetch stage, and at least one machine cycle for the decode/execute stage. However, the fetch stage of an instruction always overlaps with the last machine cycle of the execute stage of the previous instruction. The overlapping execute stage cycle may still do some work (e.g. ALU operation and/or register writeback) but memory access is reserved for the fetch stage of the next instruction. Since all instructions effectively last one machine cycle longer, fetch/execute overlap is usually ignored in documentation intended for programmers. It is much easier to think of a program as a sequence of non-overlapping instructions and consider only the execute stages when calculating instruction durations. However, when emulating a SM83 CPU core, understanding and emulating the overlap can be useful.
Sharp SM83 uses a microprocessor design technique known as fetch/execute overlap to improve CPU performance by doing opcode fetches in parallel with instruction execution whenever possible. Since the CPU can only perform one memory access per M-cycle, it is worth it to try to do memory operations as soon as possible. Also, when doing a memory read, the CPU cannot use the data during the same M-cycle so the true minimum effective duration of instructions is 2 machine cycles, not 1 machine cycle. Every instruction needs one machine cycle for the fetch stage, and at least one machine cycle for the decode/execute stage. However, the fetch stage of an instruction always overlaps with the last machine cycle of the execute stage of the previous instruction. The overlapping execute stage cycle may still do some work (e.g. ALU operation and/or register writeback) but memory access is reserved for the fetch stage of the next instruction. Since all instructions effectively last one machine cycle longer, fetch/execute overlap is usually ignored in documentation intended for programmers. It is much easier to think of a program as a sequence of non-overlapping instructions and consider only the execute stages when calculating instruction durations. However, when emulating a SM83 CPU core, understanding and emulating the overlap can be useful.
The Game Boy SoC includes a small embedded boot ROM, which can be mapped to the 0x0000-0x00FF memory area. While mapped, all reads from this area are handled by the boot ROM instead of the external cartridge, and all writes to this area are ignored and cannot be seen by external hardware (e.g. the cartridge MBC). The boot ROM is enabled by default, so when the system exits the reset state and the CPU starts execution from address 0x0000, it executes the boot ROM instead of instructions from the cartridge ROM. The boot ROM is responsible for showing the initial logo, and checking that a valid cartridge is inserted into the system. If the cartridge is valid, the boot ROM unmaps itself before execution of the cartridge ROM starts at 0x0100. The cartridge ROM has no chance of executing any instructions before the boot ROM is unmapped, which prevents the boot ROM from being read byte by byte in normal conditions
- Object Attribute Memory (OAM) DMA OAM DMA is a high-throughput mechanism for copying data to the OAM area (a.k.a. Object Attribute Memory, a.k.a. sprite memory). It can copy one byte per machine cycle without involving the CPU at all, which is much faster than the fastest possible memcpy routine that can be written with the SM83 instruction set. However, a transfer cannot be cancelled and the transfer length cannot be controlled, so the DMA transfer always updates the entire OAM area (= 160 bytes) even if you actually want to just update the first couple of bytes. The Game Boy CPU chip contains a DMA controller that coordinates transfers between a source area and the OAM area independently of the CPU. While a transfer is in progress, it takes control of the source bus and the OAM area, so some precaution is needed with memory accesses (including instruction fetches) to avoid OAM DMA bus conflicts. OAM DMA uses a different address decoding scheme than normal memory accesses, so the source bus is always either the external bus or the video RAM bus, and the contents normally visible to the CPU in the 0xFE00-0xFFFF address range cannot be used as a source for OAM DMA transfers. The upper 8 bits of the OAM DMA source address are stored in the DMA register, while the lower 8 bits used by both the source and target address are stored in the DMA controller and are not accessible directly. A transfer always begins with 0x00 in the lower bits and copies exactly 160 bytes, so the lower bits are never in the 0xA0-0xFF range. Writing to the DMA register updates the upper bits of the DMA source address and also triggers an OAM DMA transfer request, although the DMA transfer does not begin immediately
The main GameBoy screen buffer (background) consists of 256×256 pixels or 32×32 tiles (8×8 pixels each). Only 160×144 pixels can be displayed on the screen. Registers SCROLLX and SCROLLY hold the coordinates of background to be displayed in the left upper corner of the screen. Background wraps around the screen (i.e. when part of it goes off the screen, it appears on the opposite side.) An area of VRAM known as Background Tile Map contains the numbers of tiles to be displayed. It is organized as 32 rows of 32 bytes each. Each byte contains a Tile patterns are taken from the Tile Data Table located either at $8000-8FFF or $8800-97FF. In the first case, patterns are numbered with unsigned numbers from 0 to 255 (i.e. pattern #0 lies at address $8000). In the second case, patterns have signed numbers from -128 to 127 (i.e. pattern #0 lies at address $9000). The Tile Data Table address for the background can be selected via LCDC register. Besides background, there is also a “window” overlaying the background. The window is not scrollable i.e. it is always displayed starting from its left upper corner. The location of a window on the screen can be adjusted via WNDPOSX and WNDPOSY registers. Screen coordinates of the top left corner of a window are WNDPOSX-7,WNDPOSY. The tile numbers for the window are stored in the 1.3 Tile Data Table. None of the windows tiles are ever transparent. Both the Background and the window share the same Tile Data Table. Both background and window can be disabled or enabled separately via bits in the LCDC register. If the window is used and a scan line interrupt disables it (either by writing to LCDC or by setting WX > 166) and a scan line interrupt a little later on enables it then the window will resume appearing on the screen at the exact position of the window where it left off earlier. This way, even if there are only 16 lines of useful graphics in the window, you could display the first 8 lines at the top of the screen and the next 8 lines at the bottom if you wanted to do so.
1.4
Sprites GameBoy video controller can display up to 40 sprites either in 8×8 or in 8×16 pixels. Because of a limitation of hardware, only ten sprites can be displayed per scan line. Sprite patterns have the same format as tiles, but they are taken from the Sprite Pattern Table located at $8000-8FFF and have unsigned numbering. Sprite attributes reside in the Sprite Attribute Table (OAM – Object Attribute Memory) at $FE00-FE9F. OAM is divided into 40 4-byte blocks each of which corresponds to a sprite. In 8×16 sprite mode, the least significant bit of the sprite pattern number is ignored and treated as 0. When sprites with different x coordinate values overlap, the one with the smaller x coordinate (closer to the left) will have priority and appear above any others. When sprites with the same x coordinate values overlap, they have priority according to table ordering. (i.e. $FE00 – highest, $FE04 – next highest, etc.) Please note that Sprite X=0, Y=0 hides a sprite. To display a sprite use the following formulas: SpriteScreenPositionX (Upper left corner of sprite) = SpriteX – 8 SpriteScreenPositionY (Upper left corner of sprite) = SpriteY – 1
1.5 Assembly Language
A big key to understanding programming in assembly language on the GameBoy is understanding the concept of a stack pointer. A familiarity with assembly language for other processors helps greatly as the concepts are the same. The GameBoy Stack Pointer is used to keep track of the top of the “stack”. The stack is used for saving variables, saving return addresses, passing arguments to subroutines, and various other uses that might be conceived by the individual programmer. The instructions CALL, PUSH, and RST all put information onto the stack. The instructions POP, RET, and RETI all take information off of the stack. (Interrupts put a return address on the stack and remove it at their completion as well.) As information is put onto the stack, the stack grows downward in RAM memory. As a result, the Stack Pointer should always be initialized at the highest location of RAM space that has been allocated for use by the stack. For instance, if a programmer wishes to locate the Stack Pointer at the top of low RAM space ($C000-$DFFF) he would set the Stack Pointer to $E000 using the command LD SP,$E000. (The Stack Pointer automatically decrements before it puts something onto the stack so it is perfectly acceptable to assign it a value which points to a memory address which is one location past the end of available RAM.)
